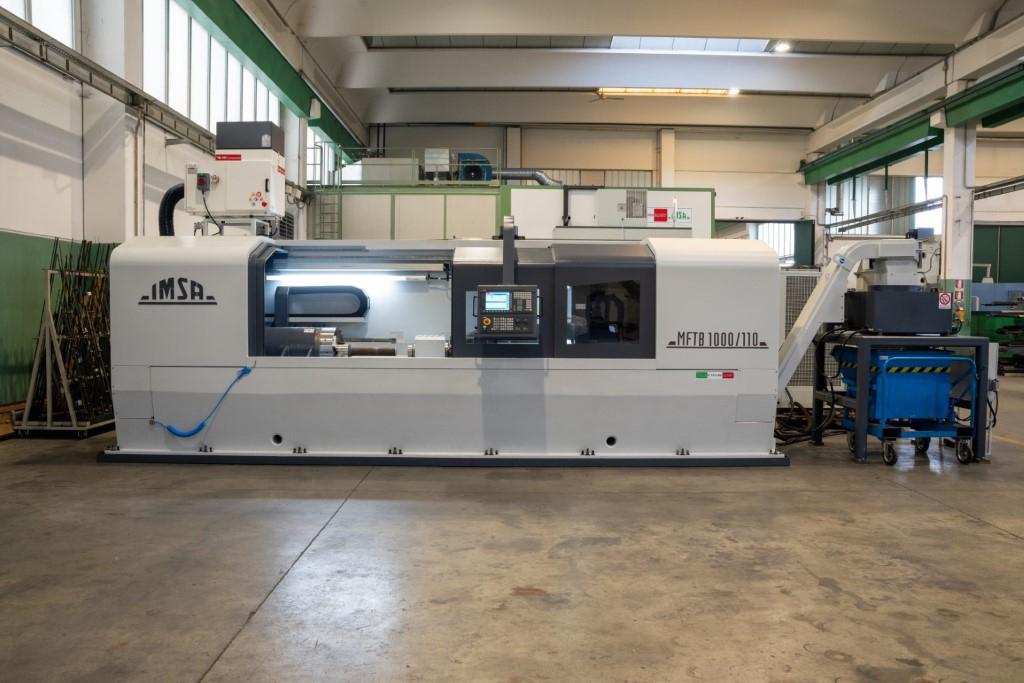

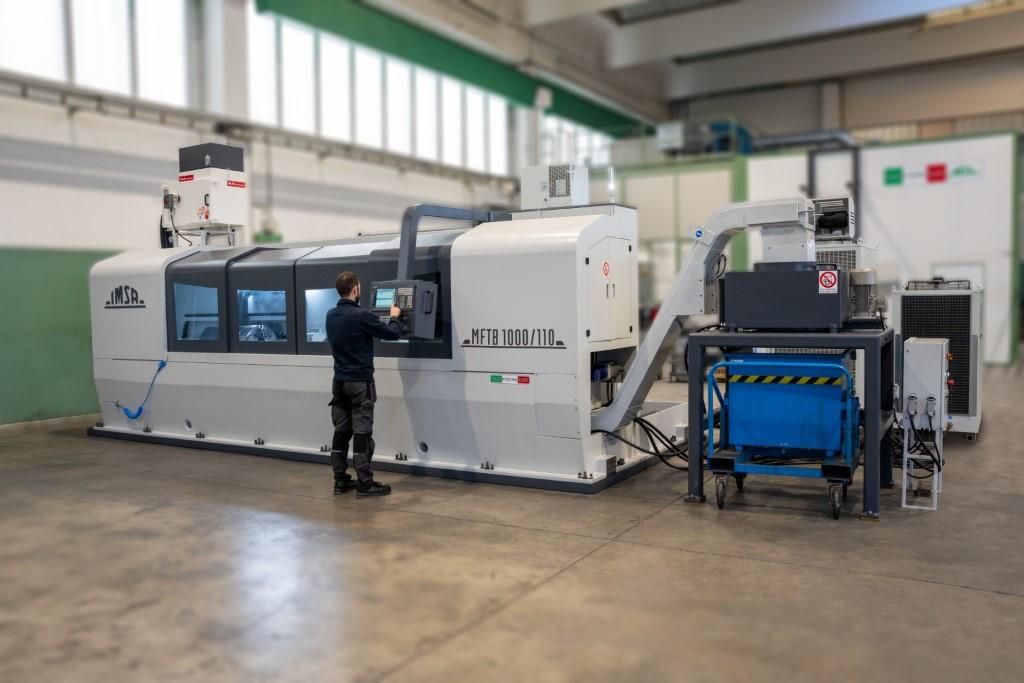

MFTB1000/110 – MFTB2000/110


Cnc Deep Hole Drilling Machine for cylindrical parts, on-center holes


  • The deep hole drilling machines of the IMSA Series MFTB are dedicated to cylindrical workpieces that have to be drilled on their rotation axis, by deep drilling method: BTA/STS Tool.
  • Drilling depth in single operation:
    • MFTB 1000 /110: 1000 mm
    • MFTB 2000 /110: 2000 mm
  • Hole diameter range 20 – 110 mm from full material.
  • Specific IMSA functions to control the deep drilling process by reading the cutting effort.
  • Temperature, pressure and oil cleanliness are fundamental parameters to ensure continuous trouble-free deep drilling operations. The IMSA MFTB…/110 deep hole drilling machines are equipped with high-pressure pumps, a complete multi-level filtering system, an oil chilling unit.


  • Adaption to drill up to dia. 135 mm in counterboring


Optimal drilling diameter range: 20-110 mm solid, (in option, up to 135 mm in counterboring).
Drilling depth max. 1000 / 2000 mm (as per machine name).
Workpiece locking movement: hydro-mechanical.
Drilling spindle 51 kW – 1500 rpm.
