Machines

Special Application Deep Hole Drilling Machines

Customization is our standard. We develop and manufacture special purpose deep hole drilling machines, for example to drill large quantities of specific mechanical parts in the automotive industry.

Deep drilling method: gun drills or BTA/STS tools. (Learn more: the Deep Drilling Process)

Custom-tailored deep drilling machines can also be designed by modifying our standard machine models, for example, to drill large plates and molds for polycarbonate extrusion.

Get in contact with us: we can assist you in determining the most appropriate solution to fulfill the particular deep drilling needs due to high production lots, robotized machine loading, high reliability in high productivity.

Special Application Deep Hole Drilling Machines

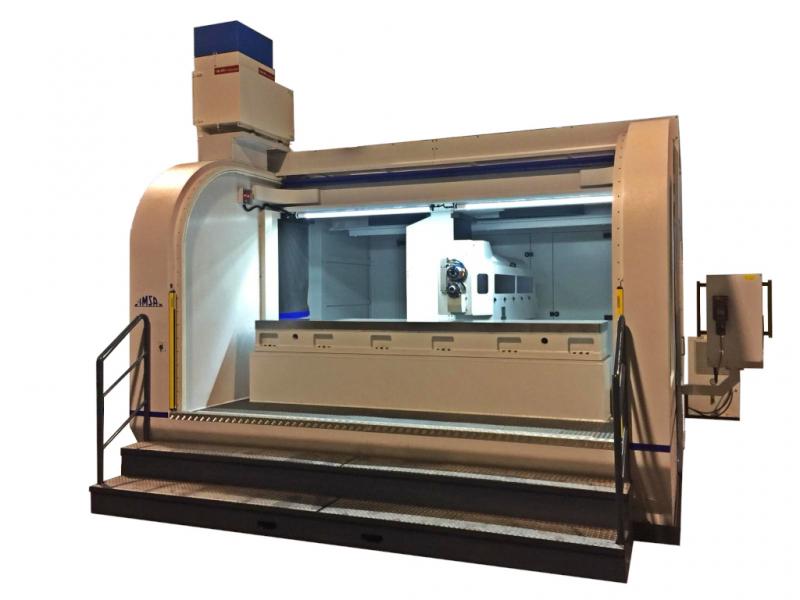

MF1500 / 3000

Customized gun drilling and milling machine with increased horizontal travel.

  • For molds and mold inserts for multiwall polycarbonate sheets;
  • Machinable workpiece: as wide as 3000mm max;
  • Horizontal X-axis: 3000mm, vertical Y-axis: 500mm;
  • Optimal drilling diameters: 4-32mm solid;
  • Drilling depth in single operation 1500mm;
  • Deep drilling spindle 11kW, 6.000rpm, liquid-cooled;
  • Milling capabilities: second spindle ISO40, 13kW, 6.000rpm, liquid-cooled.
more about this product

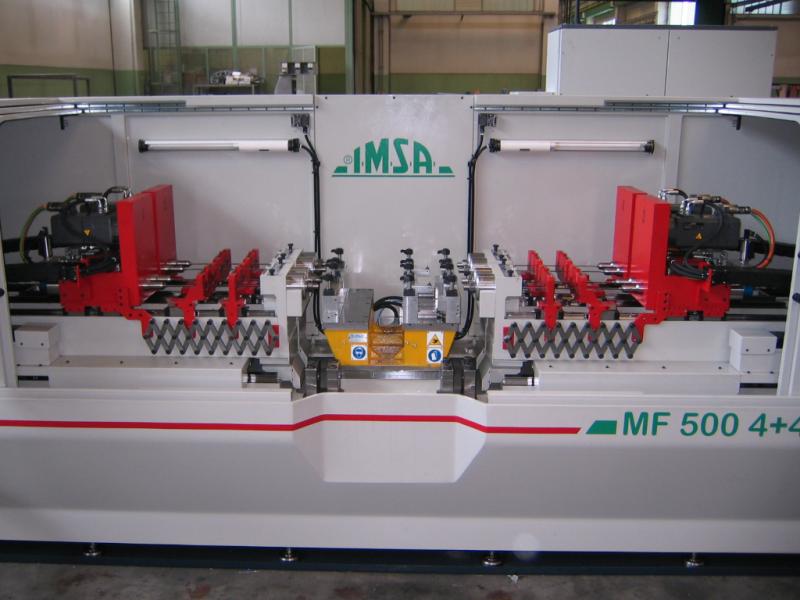

MF 500 4+4T

Deep hole drilling solution for automotive industry. Machine with 4+4 opposed heads integrated in production cell.

more about this product

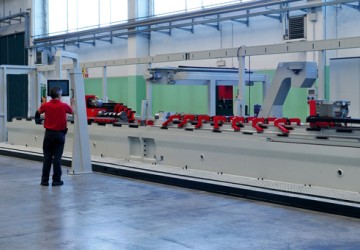

MFT6000/CR

Centerline deep hole drilling machine for cylindrical parts. Gundrilling tool, workpiece in counter-rotation, on-center drilling. Drilling depth 6 meters.

more about this product

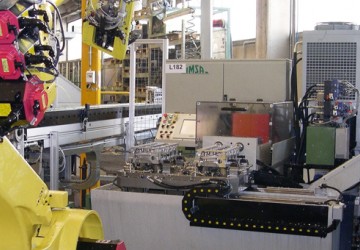

MF 600/2T

Deep hole drilling machine with two independent heads, integrated in production cell with autoloading. Automotive industry.

more about this product

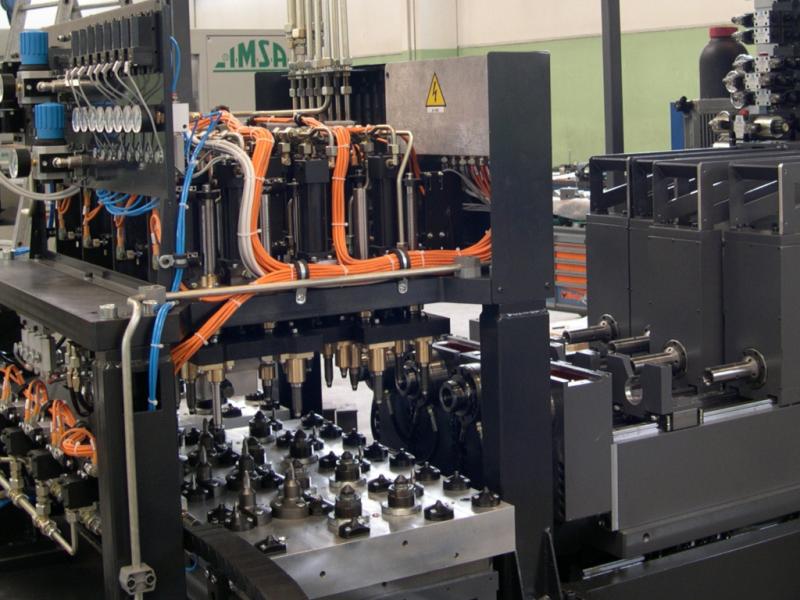

MF 350/4TA

Deep hole drilling special machine with 4 independent heads integrated in automatic production line type FMS.

more about this product

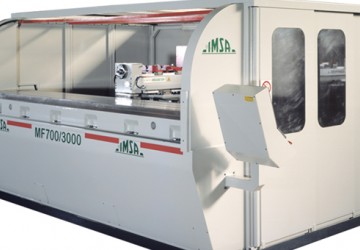

MF700/3000

Single-spindle gundrilling machine with increased horizontal travel.

more about this product

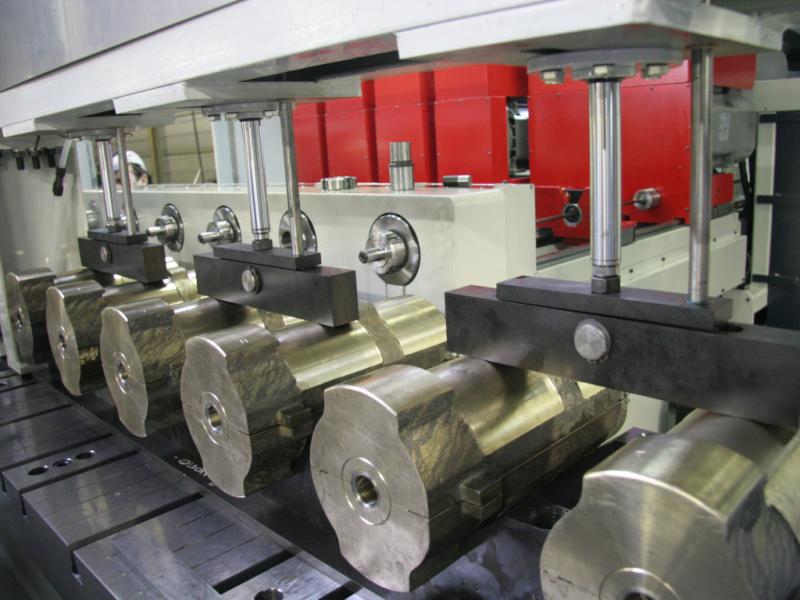

MF 500/6T

Deep hole drilling machine with 6 independent gundrilling heads for glass bottle moulds

more about this product
