READY-FACTORY | MF1000/2C | IMSA gun drilling and milling machine

with rotary/tilting table

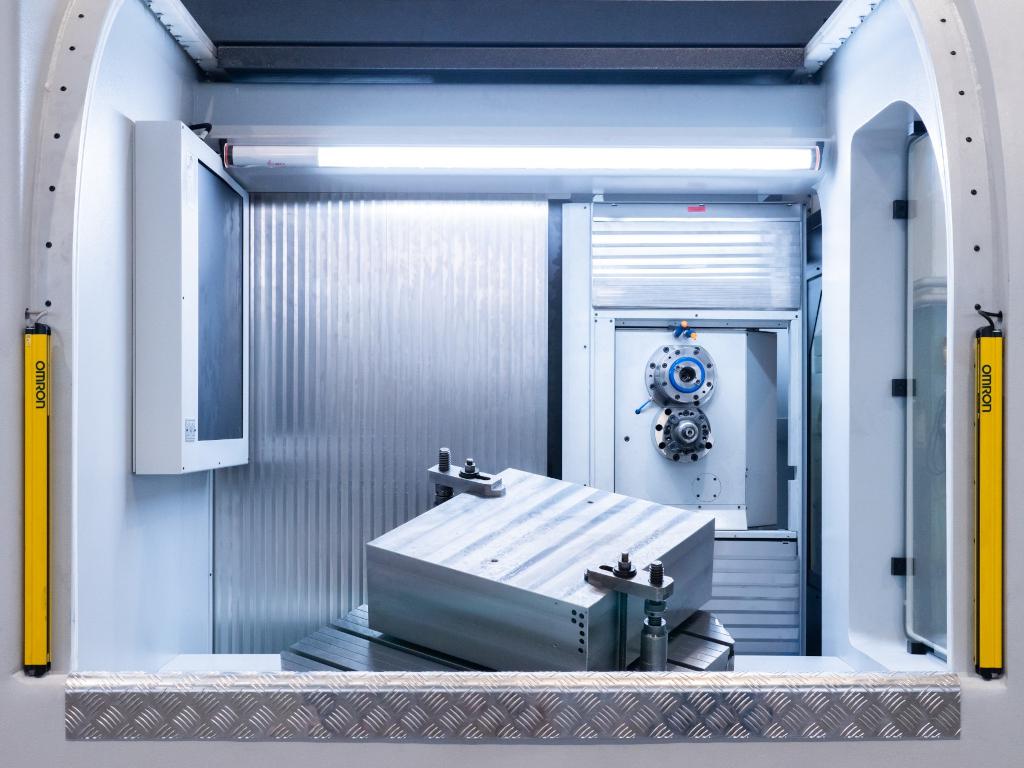

MACHINE with 6 CNC-axes for deep drilling by gun drill tool. Rotary/tilting table load 2000 kg.

Max. swing clearance 1400 mm.

The Gantry vertical column provides extreme stiffness.

No foundation thanks to the machine self-supporting structure.

11kW Gun drilling spindle, with 2 support steady rests, to drill L120xD up to 1000 mm. Optimal drilling dia. 4-25 mm solid, up to 32 mm in counter-boring.

13 kW ISO 40 milling spindle, separated from the gun drill unit, requiring no operator intervention for switchover gundrilling/machining and back.

CNC Heidenhain TNC 620 with specific IMSA functions that control the gun drilling process.

Drilling depth in single operation, V-axis: (max. L 120 x Ø) up to 1.000 mm.
Column horizontal movement X-axis (gantry column): 1.000 mm.
Headstock vertical movement, Y-axis (net): 500 mm.
Headstock approach in gun drilling / Milling travel, Z-axis: 450 mm.

1 NEW machine in this configuration is available ready-factory IN STOCK

Version with rotary+tilting table size 800x800mm load 2 t. Table rotation, B-axis: 360° / 0,001°

Table tilt angle, A-axis: +25°…-20° / 0,001°

10-pocket ISO40 automatic tool changer for milling spindle.

Pack of inductive scales for XYZ axes.

One MF1000/2C is currently available ready-factory, subject to prior sale.

TECHNICAL INFO

Drilling depth by gun drill tool: up to 1.000 mm.
Machine version with rotary+tilting table size 800x800mm load 2 t. Table rotation, B-axis: 360° / 0,001°
Table tilt angle, A-axis: +25°…-20° / 0,001°
10-pocket ISO40 automatic tool changer for milling spindle.
Pack of inductive scales for XYZ axes.
